Matrix satisface nevoile de comunicare diverse ale clienților cu gama completă de gateway-uri GSM. GSM/3G a apărut ca o alternativă superioară la rețelele fixe și oferă o acoperire mai largă și avantaje de cost.
Matrix Simado GFX44 este un gateway cu 4 porturi GSM care integrează rețelele GSM/3G cu rețelele POTS(analogice) cu fir.

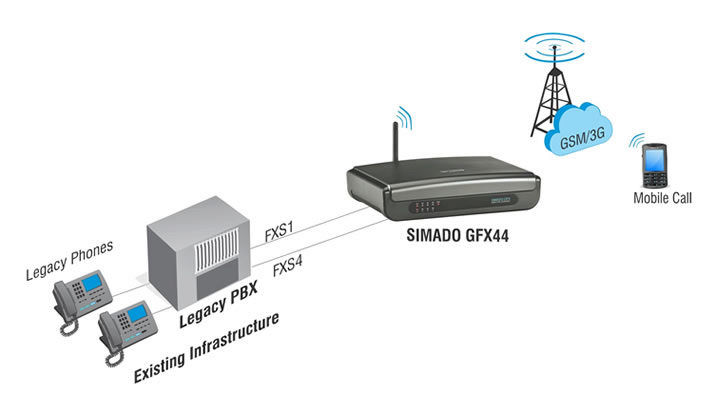

Poate fi utilizat cu orice PBX existent, fără a schimba infrastructura de telefonie existentă. Se conectează cu dispozitivele de telefonie existente prin interfața FXS. Pot fi conectate în interfață până la 4 carduri SIM, permițând utilizatorului să efectueze până la 4 apeluri simultane. Apelurile către numerele de mobil sunt efectuate prin intermediul cartelelor SIM GSM/3G, reducând tarifele mai mari de interconectare fixă-mobilă.
Facilitati:
  • Up to Four GSM/3G SIM support
  • Single Antenna for Four GSM SIMs
  • Quad-band GSM Network Operation
  • Tri-band 3G Network Operation
  • Time/Number based Call Routing
  • Direct Number Dialling on the Cellular Networks with Automatic Number Translation
  • Restrict Unwanted Calls with a List of Denied Numbers
  • CPC Signalling to Prevent Port Blockages and Accurate Billing
  • Caller ID Presentation on Analog Phones
  • Hotline Extension Setting
  • Emergency Number Dialling on GSM/3G Networks, Dial Emergency Numbers even in the Absence of SIM
  • Easy Programming Interface



Specificatii:

  • Models:
    Simado GFX44: GSM to Analog Voice Gateway with Four GSM SIM and Four FXS Ports
    Simado GFX44 3G: 3G to Analog Voice Gateway with Four 3G SIM and Four FXS Ports
  • Mobile Port:
    Frequency Bands: Quad-band GSM850, EGSM900, DCS1800, PCS1900
    Tri-band WCDMA 850/1900/2100 MHz or Tri-band
    WCDMA 900/1900/2100 MHz
    Compliance: ETSI GSM Phase2/2+
    SIM Interface: 1.8, 3V SIM Interface
    Antenna: 1.8/2.5 *dBi, 50, SMA (Male) Connector, Fixed Omni Directional Swivel Antenna1.8/3.0 *dBi, 50, SMA (Male) Connector, Omni Directional with a Cable Three Meters Long
  • FXS Port:
    Physical Connector: RJ11
    Dialling: DTMF and Pulse (10/20PPS)
    CLI Presentation: DTMF, FSK ITU-T V.23 and FSK Bellcore 202A CLI
    Call Maturity: Polarity Reversal
  • Power Supply:
    Input: External Power Adaptor
    Input: 90-265VAC, 47-63Hz
    Output: 12VDC@2A
    Power Consumption: 8W (Typical)
