Seria de gateway-uri reprezintă o gama de canale multiple VoIP – FXS.
SETU VFXTH permite organizațiilor mari să conecteze filialele dispersate la nivel mondial pentru telefonia IP.
SETU VFXTH0016 – VOIP-FXO-FXS Gateway with 16 VOIP and 16 FXS Ports
SETU VFXTH0024 – VOIP-FXO-FXS Gateway with 16 VOIP and 24 FXS Ports
SETU VFXTH0032 – VOIP-FXO-FXS Gateway with 16 VOIP and 32 FXS Ports

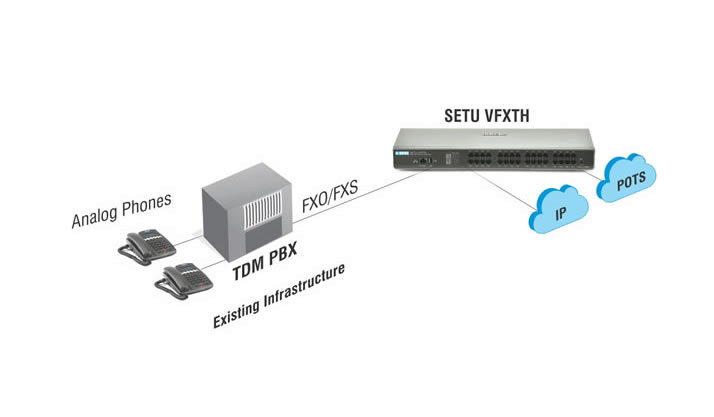

Gateway VoIP pentru PBX:
> Acces VoIP pentru sistemul de telefonie tradițional analog
> Îmbunătățirea conectivității PBX-ului TDM
> Menținerea obiceiurilor în apelare și a modelelor de comunicare în întreprindere

Facilitati:

  • Call Detail Records of 2,000 Calls
  • Caller ID Presentation on Analog Station
  • Emergency Number Dialling
  • Fax Over IP (T.38 and Pass-through)
  • Hotline Extension Setting
  • Make and Receive Calls using Analog Terminals over the IP Network
  • Port Forwarding and DMZ
  • PSTN Pass-through Port to make Calls Over POTS during IP Network Outage
  • Restrict Unwanted Calls with a List of Denied Numbers
  • SNMP Monitoring
  • TR-069 Auto-configuration
  • VOIP Security Over SRTP/TLS Encryption
  • Web based Configuration and Management
Specificatii:

VoIP Port:
Protocol: SIPv2, SDP, RTP (RFC 2833)
Connector: Ethernet (RJ45)
SIP Accounts: Up to 32
Echo Cancellation: G.168 with up to 128 ms Tail length
Voice Codecs: G.711 (A/µ Law), G.723.1, G.729AB, GSM-FR and iLBC

FXS Port:
Connector: RJ11
Dialling and Reception: Pulse and DTMF Dialling
CLIP: DTMF and FSK CLI Presentation
PSTN Pass-Through: Polarity Reversal for Call Connect/Disconnect Signalling

Power Supply:
Input: 24VDC @2.5A through External Adaptor
Power Consumption (Typical): 60W
